Manufacturing Capabilities

EQUIPMENT

THE EQUIPMENT

Every machine listed is installed and running on our own floor in Taiyuan.

#	SOURCE	POWER	BED SIZE	TYPE
1	Trumpf Germany	6 kW	6.0×2.5m	Flatbed
2	Penta Bolte	8 kW	6.0×2.5m	Flatbed
3	IPG Photonics USA	12 kW	6.0×2.5m	Flatbed
4	Raycus + Penta	30 kW	6.0×2.5m	Flatbed
5	Penta	60 kW	3.0×12.0m	FLAGSHIP ◄
6	Hongshan	—	12m·500mm	TUBE ◄

10+ machines in parallel · 100 tons/day rush capacity · 24-hour overtime available

Five flatbed lasers give us parallel processing capability. Urgent order? Split across multiple beds. Each machine runs independently. This is how we deliver 100 tons in a single day.

SEE SERVICES →

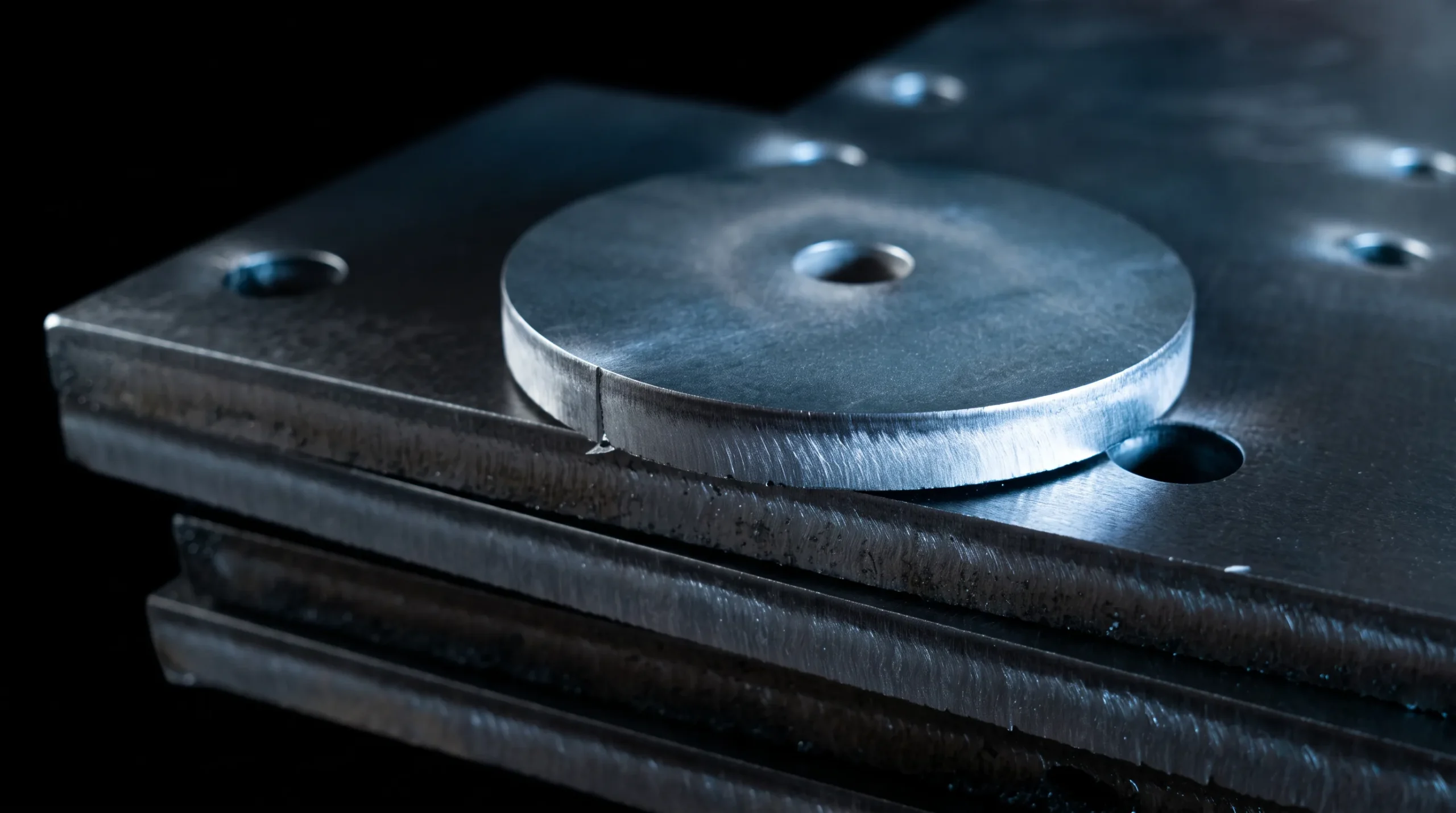

Fiber laser cutting machines on factory floor in Taiyuan

THICKNESS

THICKNESS BY MATERIAL

Actual production capabilities on our equipment. “Maximum” achievable at reduced speed.

MATERIAL	GRADES	PRODUCTION RANGE	MAXIMUM	ASSIST GAS
Stainless Steel	304·316L·201·430·2205	0.5 – 60 mm	150 mm	N₂
Carbon Steel	Q235·A36·45#·A572	0.5 – 60 mm	80 mm	O₂
Aluminum	5052·6061·5083	0.5 – 30 mm	40 mm	N₂
Titanium	Grade 2·5	0.5 – 20 mm	25 mm	Ar
Brass / Copper	C1100·C2600	0.5 – 15 mm	20 mm	N₂

Actual capability depends on grade, gas purity, nozzle, and edge quality requirements. Full material details →

TOLERANCES

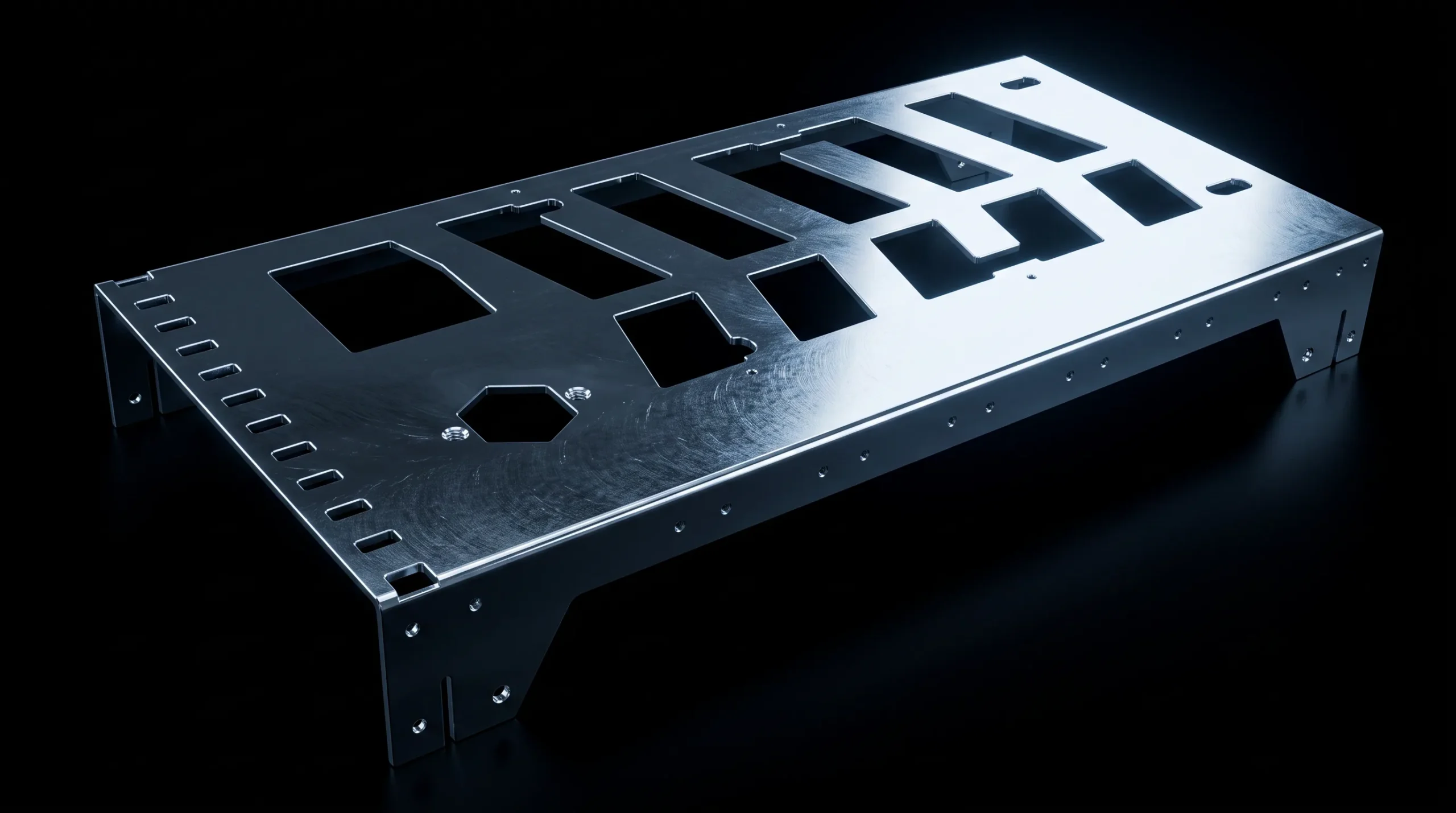

PRECISION & TOLERANCES

±0.1 mm standard across all machines. Aligned with ISO 2768-1 fine grade.

THICKNESS RANGE	TYPICAL TOLERANCE	NOTES
< 3 mm	±0.05 mm	Thin sheet, highest precision
3 – 15 mm	±0.10 mm	Standard production range
15 – 30 mm	±0.10 mm	Medium plate
30 – 60 mm	±0.10 – 0.15 mm	Thermal consideration
> 60 mm	±0.15 – 0.20 mm	Extreme thickness

Tighter than ±0.05mm? Secondary machining available (CNC milling, grinding) through qualified partners.

QUALITY CONTROL

Four checkpoints. Not just at the end.

INCOMING

Material grade verified via spectrometer before any cut is made

FIRST ARTICLE

First piece off each nest checked against your drawing and tolerances

IN-PROCESS

Random sampling during production run to catch drift early

FINAL

Every part inspected before packing — dimensional, visual, surface

SPECTROMETER

Direct-reading PMI

HARDNESS TESTER

Leeb · On-site

VERNIER CALIPER

±0.02mm

MICROMETER

0.001mm resolution

FAQ

CAPABILITIES FAQ

What power range are your fiber lasers?

6kW to 60kW. Our newest machine is a 60kW Penta with a 3×12m bed — one of northern China’s most powerful flatbed lasers. This range lets us cut everything from 0.5mm foil to 150mm stainless plate. Our services →

What tolerance can you hold?

±0.1mm standard. Thin sheet (<3mm) typically holds ±0.05mm. Thick plate (>60mm) may relax to ±0.15–0.20mm due to thermal effects. We’ll tell you upfront what’s achievable for your specific part.

How do you ensure material grade is correct?

Direct-reading spectrometer on every incoming batch. Hardness testing on-site. Material certificates available. No substitutions without your approval.

What surface finishes can you do?

In-house: brushed, polished, painted, shot-blasted. Via qualified partners: passivation, electroplating, powder coating. You receive finished parts — we manage the process end to end.
